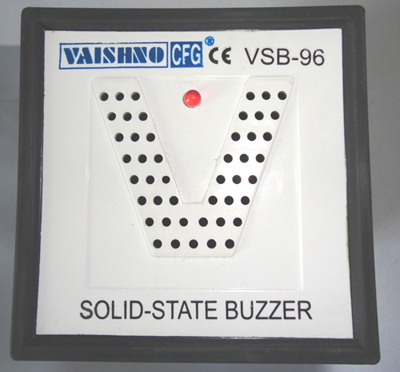

| "VAISHNO CFG" offer Solid state buzzer to meet control panel and control desk manufacturer's specific requirements. The range is broadly divided into Six groups: |
|
- Solid State Buzzer 220VA.C/D.C.
- Solid State Buzzer 110VA.C/D.C.
- Solid State Buzzer 48VA.C/D.C.
- Solid State Buzzer 30VA.C/D.C.
- Solid State Buzzer 24 VA.C/D.C.
- Solid State Buzzer 12VA.C/D.C.
|
|
The Designed of Solid State Buzzer to provide audio annunciation. The output pitch has been carefully selected in the maximum sensitivity zone of human auditory system and the pitch is continuously adjustable over wide range giving pleasing sound to the comfort and convenience of the operator.
The device is fully solid state buzzer giving total reliability and long life over that of Electro Magnetic Buzzer and bell. |
|
Application:
- Control panel.
- Control Desk.
|
|
| |
|
|
|
| |
Salient Features:
- Fully Solid State.
- Long Life.
- Low Power Consumption.
- Generates no radio frequency voice.
- Protected against Polarity reversal.
- Suitable for operation on A.C or D.C.
- Exquisite appearance.
- Easy flush mounting for panels.
|
|
Technical Specification:
- Dimension: 96X96mm.
- Panel out size: 92X92mm.
- Operating voltage range: 80% to 120% of rated voltage.
- Burden: 5VA in A.C, 5W in D.C.
- Audio output: 1W, 104DB.
- Thermal rating: Continuous at 120% of rated voltage.
- Adjustable Pitch.
|
|
| |
| |
