HRC FUSE BASE

DOWNLOAD

"VAISHNO CFG" Make High Ruptured Capacity Fuses are ISI marked as per IS. We offer HRC fuse base in two moulds that are classified as Bakelite moulded fuse base and DMC moulded fuse base.

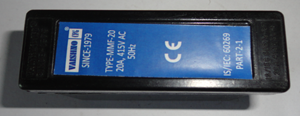

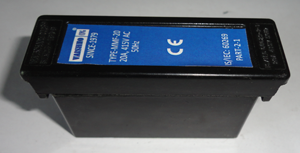

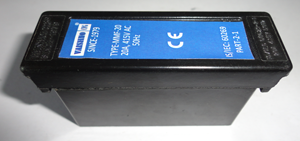

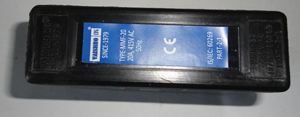

The Bakelite Moulded fuse holders are available in different rating from 20A to 125A and these are available in bus bar, front & rear connection as per IS13703:part2/section1 type MMF rated voltage 415V, 50Hz, AC.

The DMC moulded fuse base available in Circlip & Spring Loaded type from 125A to 630A as per IS13707:1993 part/sec.1 type FBO rated voltage 415V, 50Hz, Ac.

Technical Specification:

Low watt loss results into low temperature rise and considerably power saving.
Most reliable and safe operation.
High rupturing capacity @80KA.
High resistance to aging.
Low cutoff current causes least stress to downstream equipments.

Bakelite Moulded Fuse Holder divided into 9 Groups:

Front connection 20A.
Bus Bar Connection 20A.
Rear Connection 20A.
Front Connection 32A.
Bus Bar Connection 32A.
Rear Connection 63A.
Front Connection 63A.
Bus Bar Connection 125A.
Rear Connection 125A.

DMC Moulded Fuse Base divided into 5 Groups:

Circlip Connection 250A.
Spring Loaded Connection 250A.
Circlip Connection 400A.
Spring Loaded Connection 400A.
Spring Loaded Connection 630A.

Vaishno Switchgears is into manufacturing of HRC Fuse base (High Ruptured Capacity Fuses). Vaishno Switchgear supply and exports High Ruptured Capacity fused from it’s Noida Plant (India).
