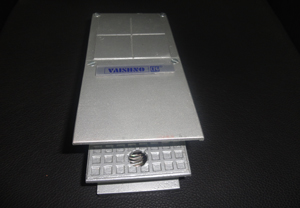

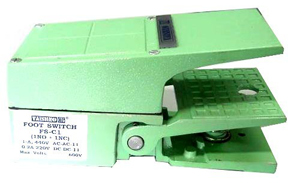

HEAVY DUTY FOOT SWITCH

"VAISHNO CFG" Heavy Duty Foot Switches are designed with one aim only to help you produce better, faster with less production down time. Industrial rated and ideally suitable for treadle operated machines/ systems and built to stand the toughest working conditions. They are Oil tight, dust proof and designed to open and close in either A.C or D.C pilot circuits available in 2 position spring return, front treadle operated with or without guard and now with shield for total protection against inadvertent use.

"VAISHNO CFG" make Heavy Duty Foot Switches range are broadly divided into six groups:

• Heavy Duty Foot Switch           (1NO+1NC) with guard.
• Heavy Duty Foot Switch           (1NO+1NC) without guard.
• Heavy Duty Foot Switch           (2NO+2NC) with guard.
• Heavy Duty Foot Switch           (2NO+2NC) without guard.
• Heavy Duty Foot Switch           (1NO+1NC) with shield guard.
• Heavy Duty Foot Switch           (2NO+2NC) with shield guard.

Application:

• Industrial machine & apparatus.
• Medical machine & apparatus.

Salient Feature:

• Enclosure: Die Cast aluminum.
• Thermal current (Ith): 15A.
• Insulation Voltage (UI): 660VAC.
• Operating force: 0.595 Kg (Max.), 0.387Kg (Min.).
• Terminal Capacity: 2.5 sq. mm solid or standard conductors.
• Mechanical & Electrical life: 10 million operations.
• Frequency of operation: 2500 per hour.
• Method of operation: Treadle operations with spring return.
